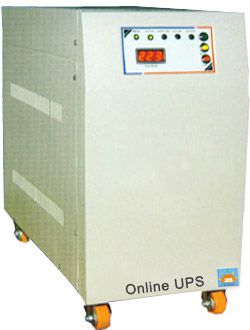

Online UPS HF ISO Series 3 Phase in 1 phase out
Download PDF
Special Features
High frequency, double conversion on-line UPS
Microprocessor based PWM technology
8 segment display for output and LED display
3 Phase in 1 Phase out
UPS start - up without battery and cold start
Short circuit protection, over load protection
Lightning and surge protection
SCR controlled convertor
Full out put isolation
Optional RS 232 interface, SNMP
Technical Specifications
Power rating
10 KVA
15 KVA
20 KVA
25 KVA
30KVA
Input
Voltage
440V +/ - 20%
Frequency
50Hz+/- 2%
Phase
THREE
DC bus voltage
360 v dc
Out put
Voltage
220V +/ - 2%
Freq
50HZ + / - 0.2%
Phase
Single
Wave form
Pure Sine Wave
Transient response
Within 3 cycles
THD
<3 %
Crest factor
3:1 (Max)
Over load capacity
110% for 5 Minutes, 111 % -150% for 10 Seconds, > 150% - Shut Down
Noise Level
< 55 dB at distance of 1 meter
Out put Isolation
yes
Charger
Voltage
410
Current
Selectable 7 % of battery capacity
Displays
LEDs
Main on, invertors on, dc on, over load, battery low, dc high
Alarms
Over load, Battery low, Shut down and on all errors
Communication port
Rs 232, SNMP
Optional
