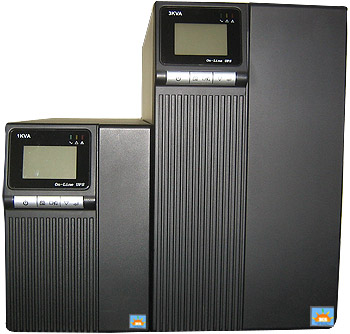

Online UPS HF TL Series 1 Phase in 1 phase out  Download PDF

Special Features
High frequency, double conversion on-line UPS
Microprocessor based PWM technology
LCD display
1 Phase in 1 Phase out
UPS start - up without battery and cold start
Short circuit protection, over load protection
Lightning and surge protection
SMPS based convertor
RS 232 interface, Optional SNMP



Technical Specifications
Power rating 1 KVA 2 KVA 3 KVA
Input Voltage 220V +/ - 20%
Frequency 50Hz+/- 2%
Phase Single
DC bus voltage 36 v dc 96 V DC 96 V DC
Out put Voltage 220V +/ - 2%
Freq 50HZ + / - 0.2%
Phase Single
Wave form Pure Sine Wave
Transient response Within 2 cycles
THD <3 %
Crest factor 3:1 (Max)
Over load capacity 110% for 5 Minutes, 111 % -150% for 10 Seconds, > 150% - Shut Down
Noise Level < 55 dB at distance of 1 meter
Out put Isolation No
Charger Voltage Selectable 110 to 120 % of VDC
Current Default Charger 1 A
Additional charger 7.5 A
Displays LCD Input Voltage / Frequency, Battery Voltage, Output Voltage / Frequency, Load watt / VA value and percent, Inverter Temperature, Operation mode such as "Online", or "on Bypass"
LEDs Green led for normal operation
Yellow led for warning condition
Red led for abnormal operation
Alarms Over load, Battery low, Shut down and on all errors
Communication port Rs 232, SNMP Optional
