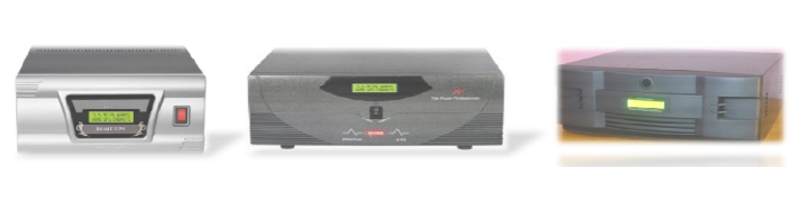

Solar Power Control Unit & Charge Controller

TECHNICAL SPECIFICATIONS Model SPCU 12V 20A SPCU 24 V 20A SPCU 48 V20A SPCU 48V30A Out Put Specifications 14.5VDC 28.5 VDC 56VDC 56DC Technology MPPT Logic P & O Method, Buck Topology Controller Efficiency >95% Status Display LCD Solar ON /OFF , MAINS ON/OFF , LOAD ONSOLAR/MAINS , POWER IN WATTS. Dimension (L*B*H) 350*310*175 (mm) MPPT CHARGE CONTROLLER Solar Panel Voltage 14- 21 VDC 28-45 VDC 56-80VDC 56-80VDC Out Put Voltage 14.5VDC 28.5VDC 56VDC 56VDC Controller Current 20 A Max 20A Max 20A Max 30A Max Controller Mode Maximum Power Point Tracking Efficiency >95 % Topology Micro controller based Buck Topology. Protections Battery Over Charge, Over Temperature, Short circuit, Operating Temp 0 to 45 Degree C SPECIAL FEATURES This unit senses Mains availability, Battery State, Solar Power Availability and strength and Operates Your Invertor in such a way that All solar power is either stored in battery or utilized as load by tripping your mains supply While not allowing the battery to discharge for a power failure. This unit brings down your power bill depending on the wattage of Solar Panel You Are installing. Also there is no charging from Mains supply during day times. This saves power up to 20% This unit can enable you to reduce the ampere hour of battery you need for the next battery change. This is a green energy solution. So be proud that you are part of team against Global warming.
