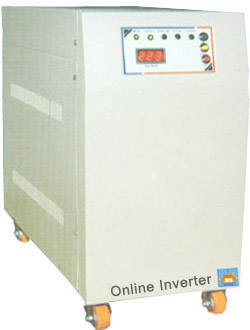

Inverter HF ISO  Download as PDF



Special Features
Pure Sine Wave Output
Intelligent Charger
Any load ( AC, Motor, Pump, etc )
Any Battery Option
Configurable Charging Modes






Technical Specifications

Power rating 2.5 KVA 3.5 KVA 5 KVA 7.5 KVA 10 KVA
Input Voltage 220 V +/ - 20%
Frequency 50Hz+/- 2%
Phase Single
DC bus voltage 48 V DC 48 VDC 96 VDC 180 VDC 180 V DC
Out put Voltage 220V +/ - 2%
Freq 50HZ + / - 0.2%
Phase Single
Wave form Pure Sine Wave
Transient response Within 3 cycles
THD <3 %
Crest factor 3:1 (Max)
Over load capacity 110% for 5 Minutes, 111 % -150% for 10 Seconds, > 150% - Shut Down
Noise Level < 55 dB at distance of 1 meter
Out put Isolation yes
Charger Voltage Selectable 115 to 120% of UDC
Current Selectable 7 % of battery capacity
Displays 8 Segment 8 segment display for voltage / LED
LEDs main on, invertors on, DC on, over load, battery low, DC high,
Alarms Over load, Battery low, Shut down and on all errors
